Hospital Cubicle Curtain Tracks

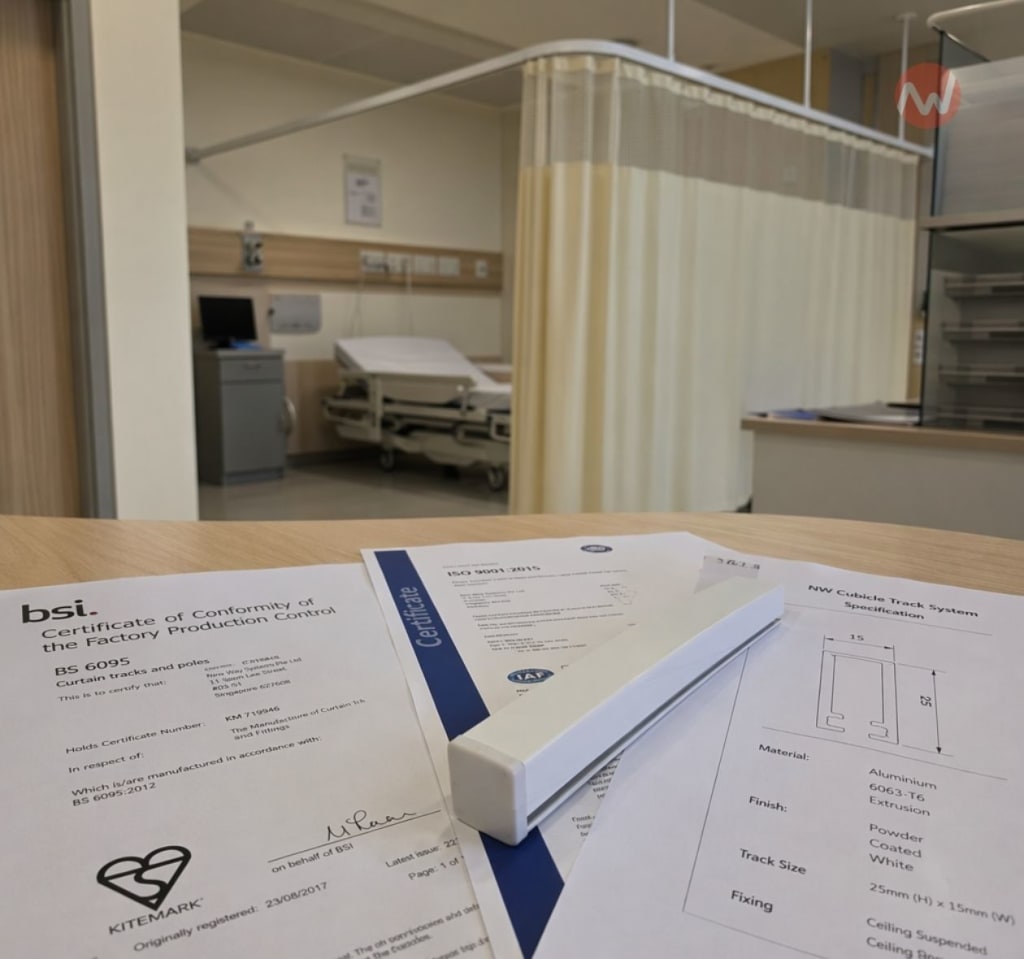

New Way ships four certificates with every project. BS 6095 covers the track. ISO 9001 covers the manufacturer. BS 5867 Part 2 Type C covers the curtain fire rating. ISO 20743 covers the antimicrobial. Procurement officers reference all four in MY MOH and SG MOH tender language. The pack ships as a single bundle, ready for MSQH, JCI, Bomba, or SCDF visits.

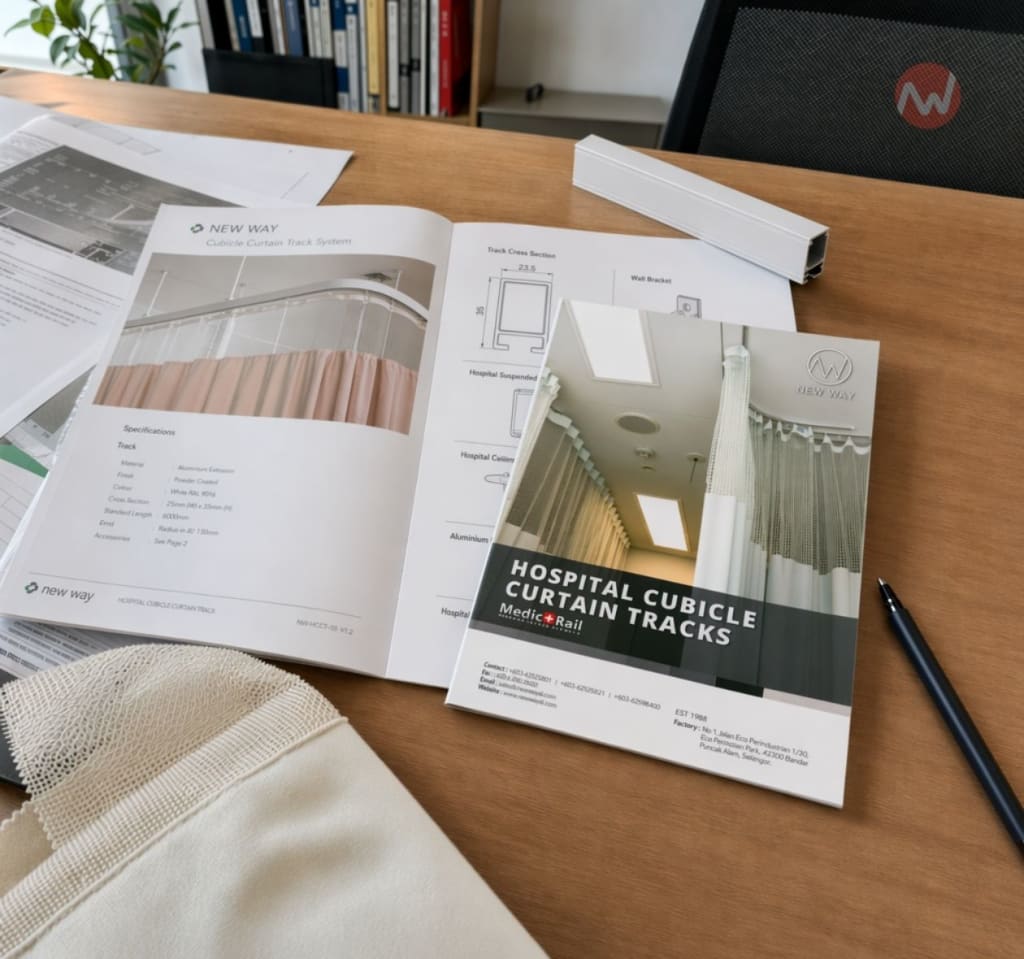

Generic tracks fail review because they cannot publish numbers. We publish them. The system carries 15 to 20 kg per metre distributed load. Support spacing is 1.0 to 1.2 m. Maximum unsupported span is 1.5 to 2.0 m. Track wall thickness is 1.2 to 1.5 mm in 6063-T5 extruded aluminium. Spans beyond 6 m need structural review at design stage.

Some tender drafts ask for “fireproof NFPA 701”. That phrase is incorrect. NFPA 701 tests flame resistance. It does not rate anything as fireproof. The defensible call is BS 5867 Part 2 Type C, paired with BS 6095 on the track and ISO 9001 on the manufacturer. Our curtains also pass NFPA 701, BS 5867 Part 2 Type B, M1, and DIN 4102 B1.

Per Leeden Sdn Bhd, hospital cubicle tracks last 10 to 20 years. Lowest-bidder selection breaks the math. Re-bid cost, defect cost, changeover labor, and audit risk all exceed the upfront delta. Specifiers and dealers both use this framing to defend the cubicle line at VE close.

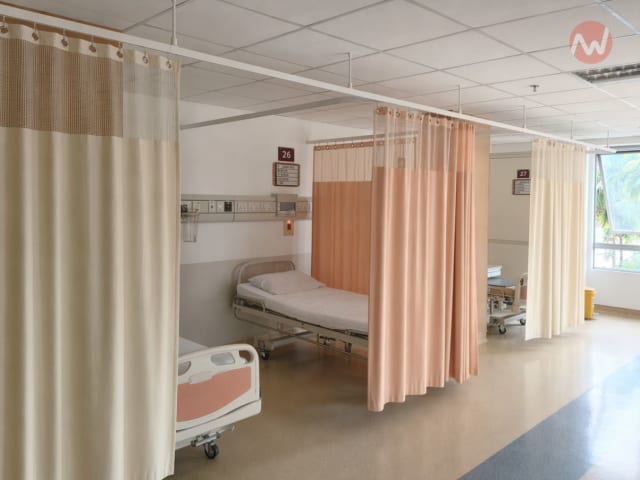

Straight track runs the length of the bay. End brackets fix to the wall at both ends. This is the standard for open ward bays, ER triage lines, and dialysis chair rows. Mix straight sections with corner pieces on the same procurement to handle complex floors.

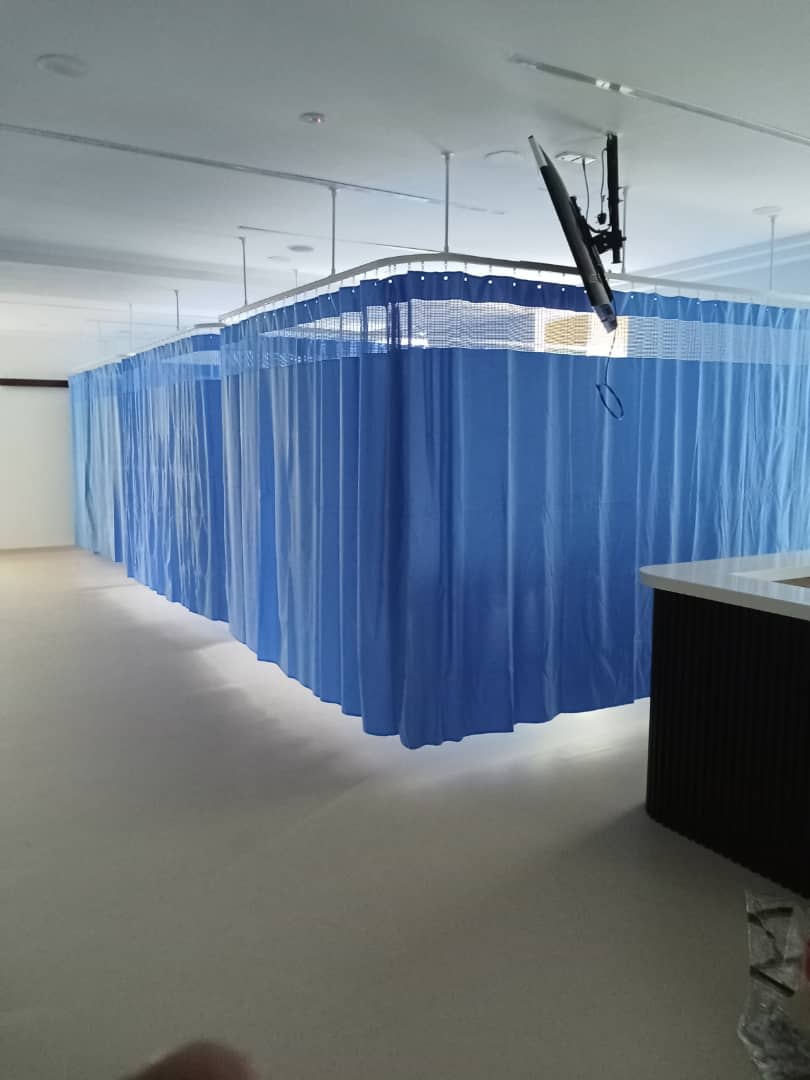

Treatment cubicles need bays with corners. L-shape uses one 90-degree corner. U-shape uses two corners with a suspended bracket across the run. ICU isolation bays often run U-shape for end-of-bay enclosure. Mix L and U bays across the same floor on a single procurement.

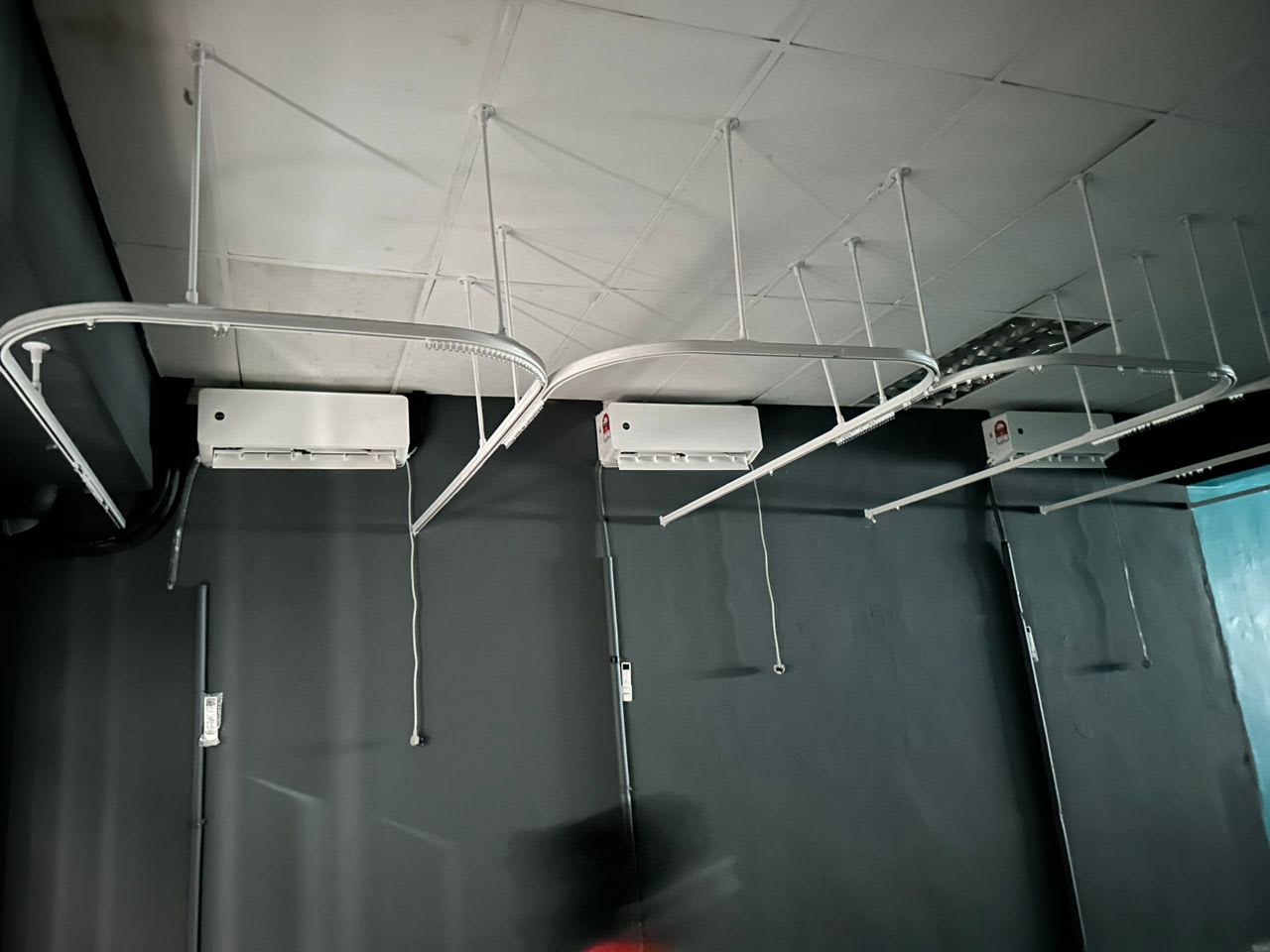

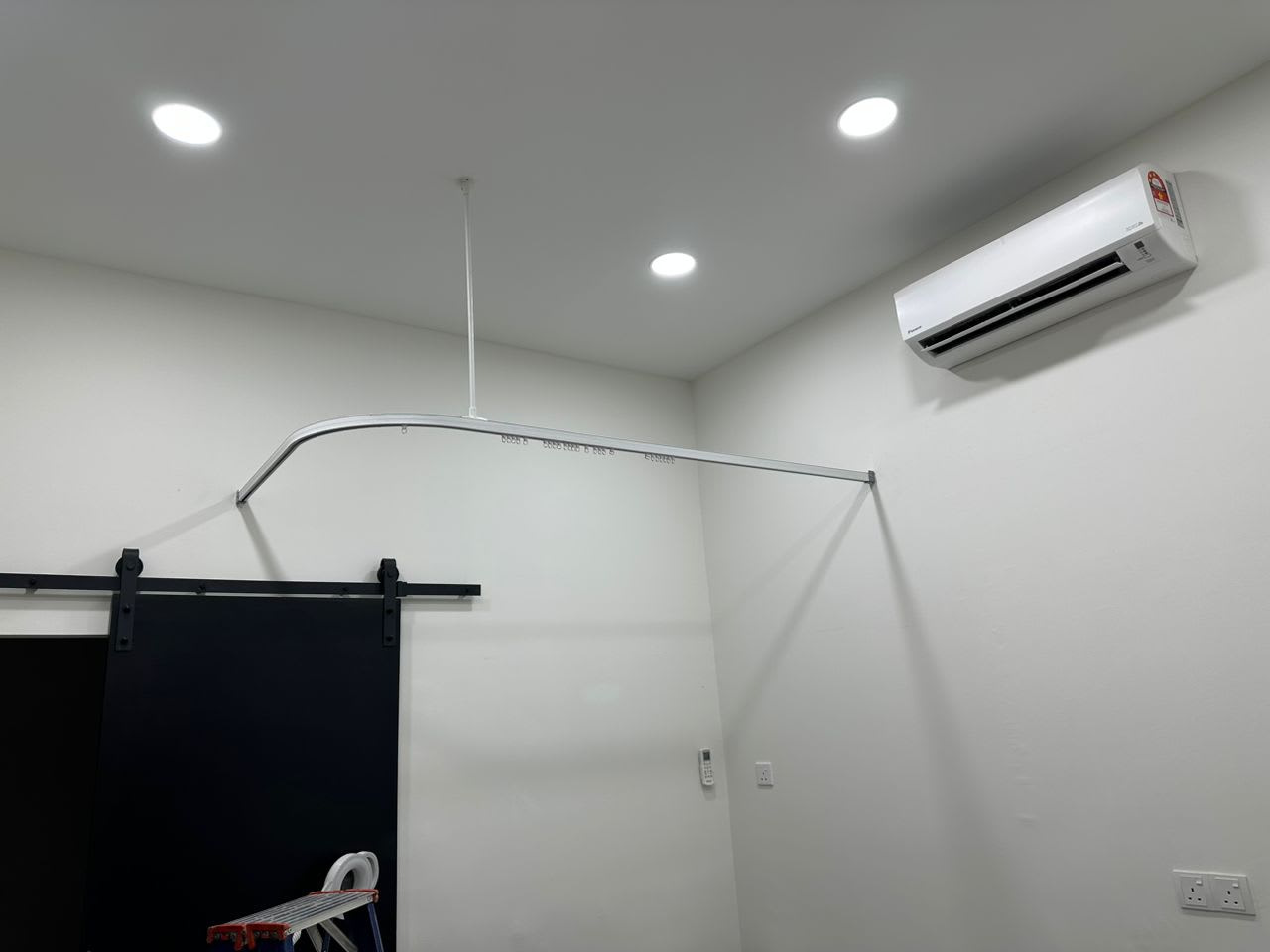

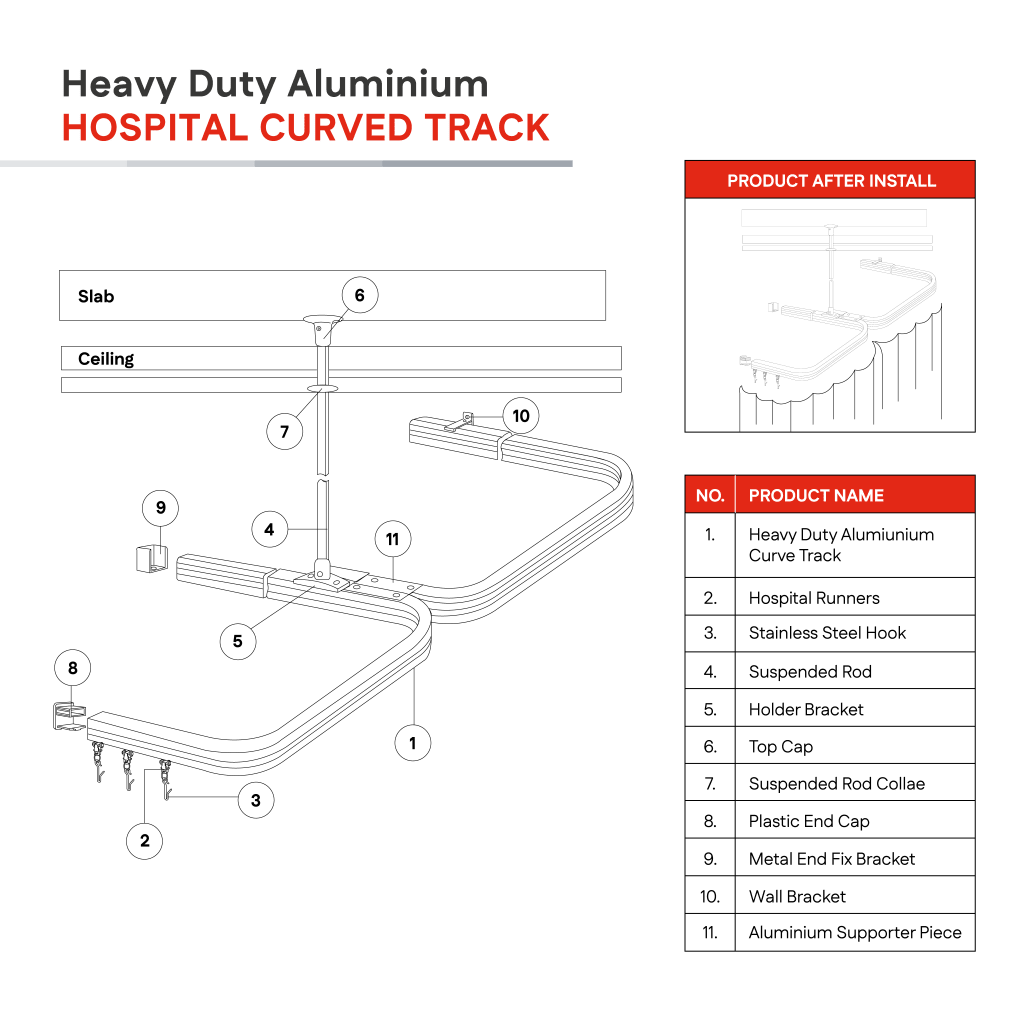

Hospitals rarely have clean room shapes. Curved track at 300 mm minimum bend radius picks up retrofit corners, structural columns, and bed-enclosure curves. Architects specify curves only where the floor needs them. Mix curved sections with straight and corner runs in the same procurement code.

A single hospital floor often runs open ward bays, isolation corners, ER triage, and retrofit columns. The same Standard Hospital Cubicle Curtain Track ships into all of those. Specifiers issue one BOQ across the floor. Dealers submit one quotation. Reconfiguration during surges is a curtain move, not a partition rebuild.

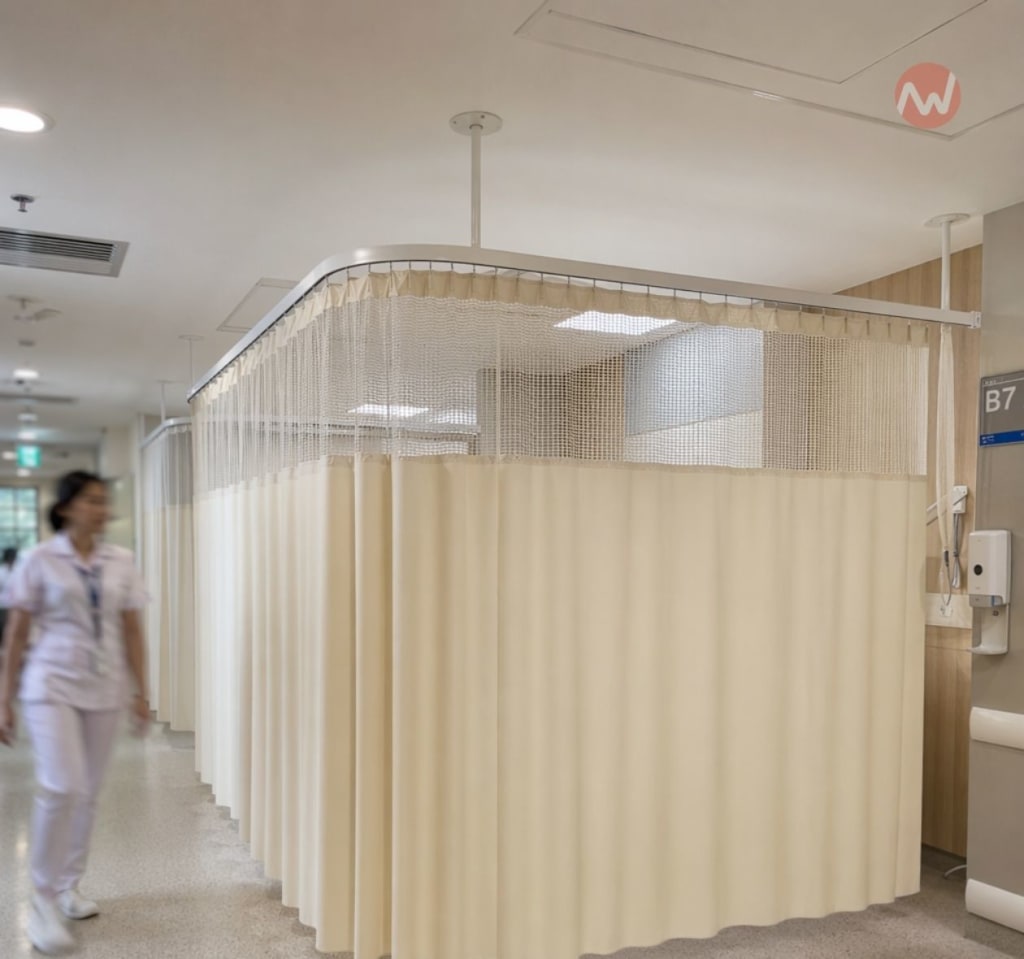

Our polyester curtain ranges from 85 to 95 percent opacity. That is the visual privacy benchmark for patient examinations and personal care. The 30 percent open mesh header sits above the privacy zone for smoke and sprinkler clearance. Curtains hang without gaps at the corners thanks to the 300 mm minimum curved bend radius.

Curtains carry silver-ion or Bioguard treatment. The treatment delivers 99.9 percent bacterial reduction in 24 hours against MRSA, E. coli, and S. aureus. Infection-prevention teams use the curtain change cycle as the audit-evidence anchor. The treatment holds through 50+ wash cycles at 75 to 85 degrees Celsius.

Mental-health, paediatric, dementia, and ER observation bays carry ligature risk. An optional 6 to 8 kg breakaway bracket releases per NHS Estates standards. Below the threshold the bracket holds normally. At or above the threshold it releases to remove the failure mode. The provision ships per zone, so general wards keep standard brackets.

Adjustable ceiling brackets carry 50 to 200 mm drop. The range absorbs MEP clashes and ceiling-grid variations. Side-fix SS304 wall brackets are available where ceilings cannot carry the load. Dealers use the drop range to clear soffits, light grids, and gas-supply lines without site-cutting the track.

Curtains deliver 99.9 percent bacterial reduction in 24 hours. The targets are MRSA, E. coli, and S. aureus. The treatment is silver-ion or Bioguard. Third-party testing verifies efficacy to ISO 20743 or AATCC 100. Performance holds through 50+ wash cycles at 75 to 85 degrees Celsius thermal disinfection.

The hookless option uses snap-in grommets or a buttonhole header. SafeCare BC field data reports changeover dropping from 10 to 20 minutes per traditional curtain to 1 to 2 minutes per hookless curtain. That roughly 90 percent reduction makes a stricter cycle feasible without doubling EVS staffing. Three carrier options ship on the same track, so hospitals can phase in the change.

Ladder use during curtain change is a recognised EVS hazard. The hookless system removes the ladder requirement at most ceiling heights. EVS leads run the change cycle from floor level. Maintenance ticket volume drops. Worker compensation exposure drops with the workflow change.

Curtains hold up to 75 to 85 degrees Celsius thermal disinfection laundering. Chlorine-based disinfectant cycles common to MY and SG hospital laundry are compatible. Curtain shrinkage stays below 3 percent after 5 washes. Colorfastness is ISO 105 Grade 4 to 5. Visible quality holds across the change cycle.

Facility teams need a documented schedule, not just a documented spec. MOH Malaysia and MOH Singapore do not publish a single interval. Hospitals set their own protocol. Common practice: change between patients in isolation, every 1 to 3 months for shared bays, immediate change when visibly soiled. The hookless header makes a stricter cycle achievable.

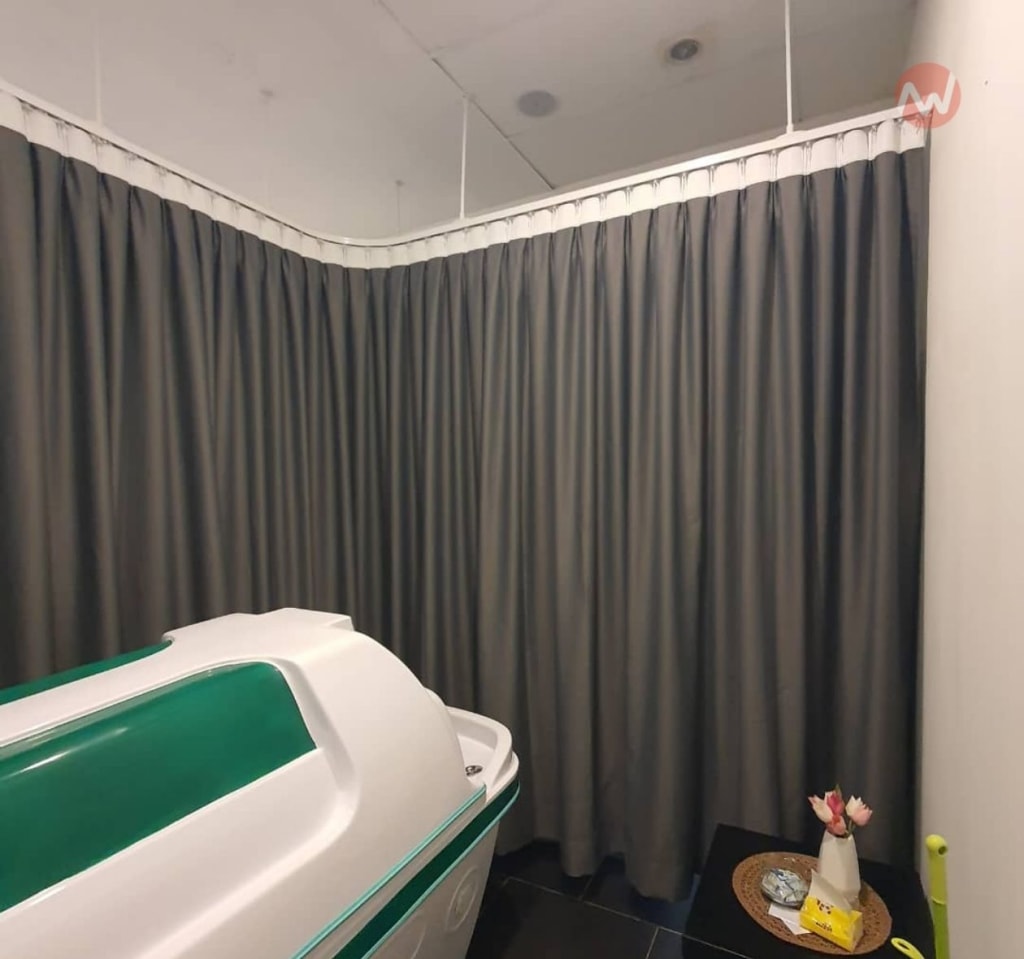

Carriers are POM or Nylon 6. Each carrier rides on enclosed ball-bearing rollers. Load rating is 2 to 3 kg per carrier. Spacing is 75 to 100 mm. The enclosed bearing reduces binding under the patient-pulling pattern documented in ICU and ER bays.

The track profile is extruded 6063-T5 aluminium. Wall thickness is 1.2 to 1.5 mm. The alloy holds shape under load without creep. That matters most on wide ICU bay runs where unsupported spans approach 2 m. Grade 5 corrosion resistance to AS/NZS 4020 suits humid clinical environments.

Dealers servicing hospitals report fewer callbacks on our carrier and bearing combination. Enclosed bearings, defined carrier spacing, and heavier wall-thickness profile reduce the sag, misalignment, and binding patterns that drive early failure. Dealers see lower service cost. Specifiers see cleaner handover.

End caps are ABS plastic in closed or open options. End stops are Nylon or POM. Track joiners are aluminium, matched to the profile. All are sized for high-cycle clinical use. Dealers can swap individual components without removing the track from the ceiling.
